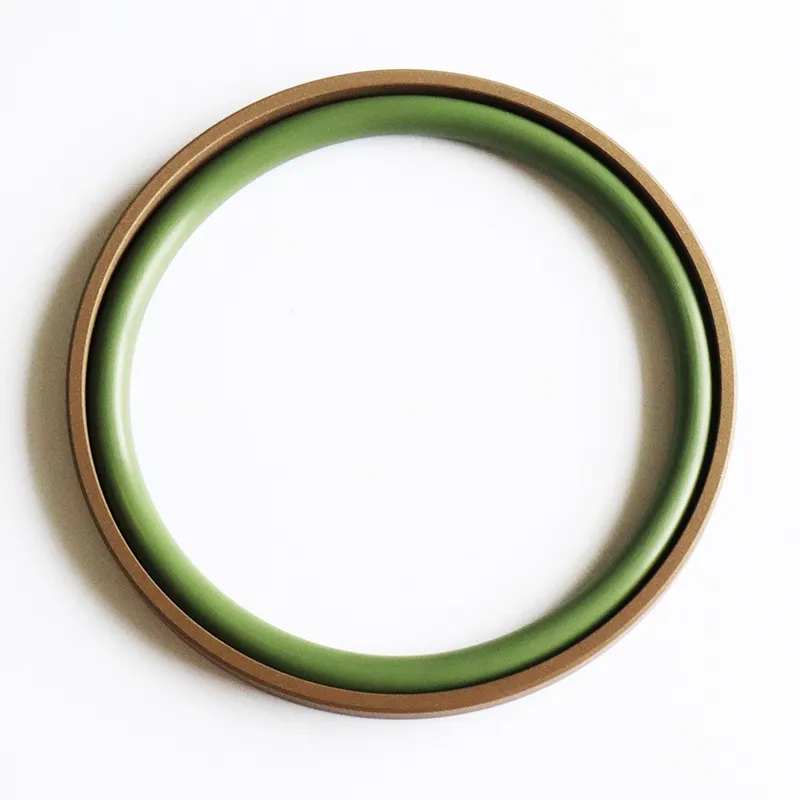

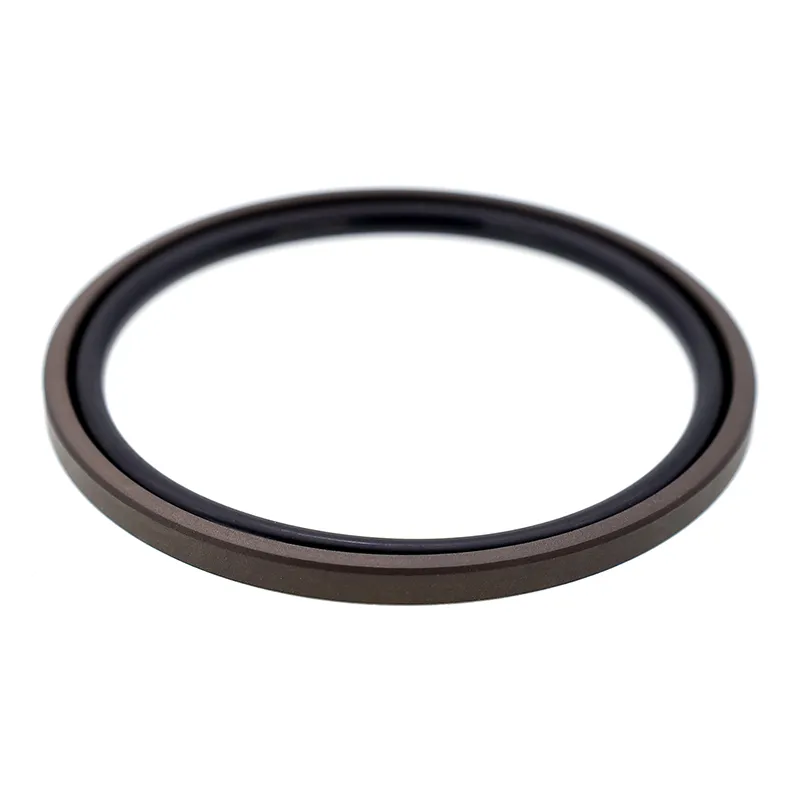

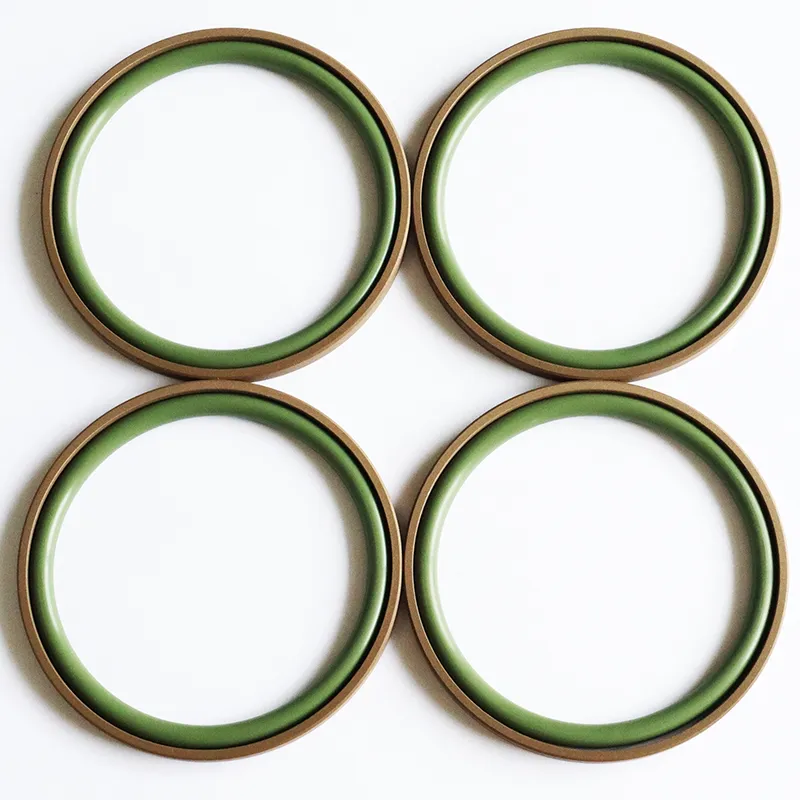

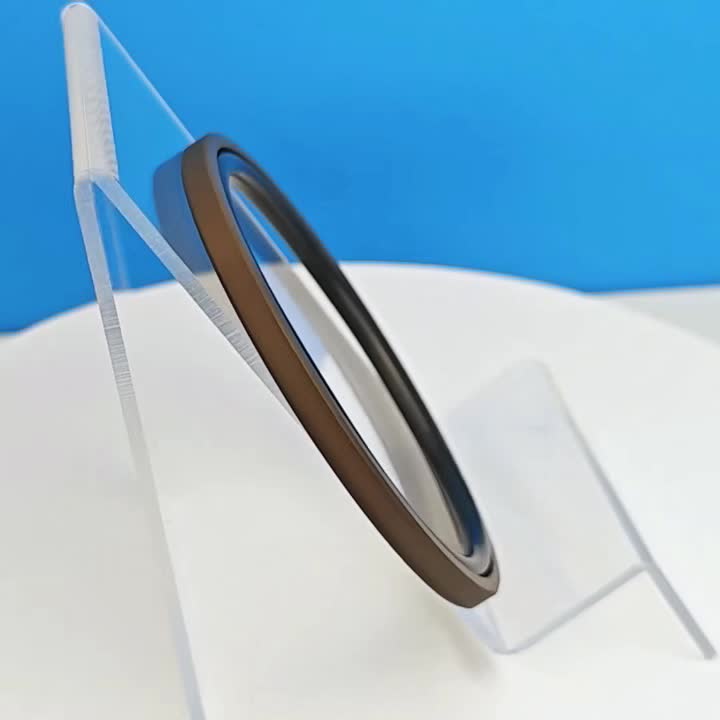

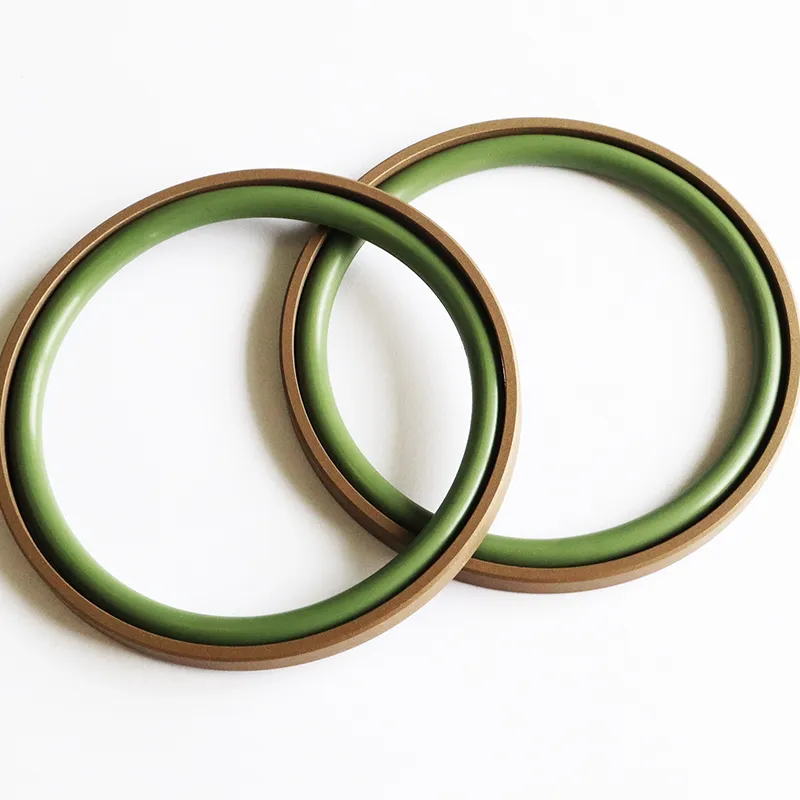

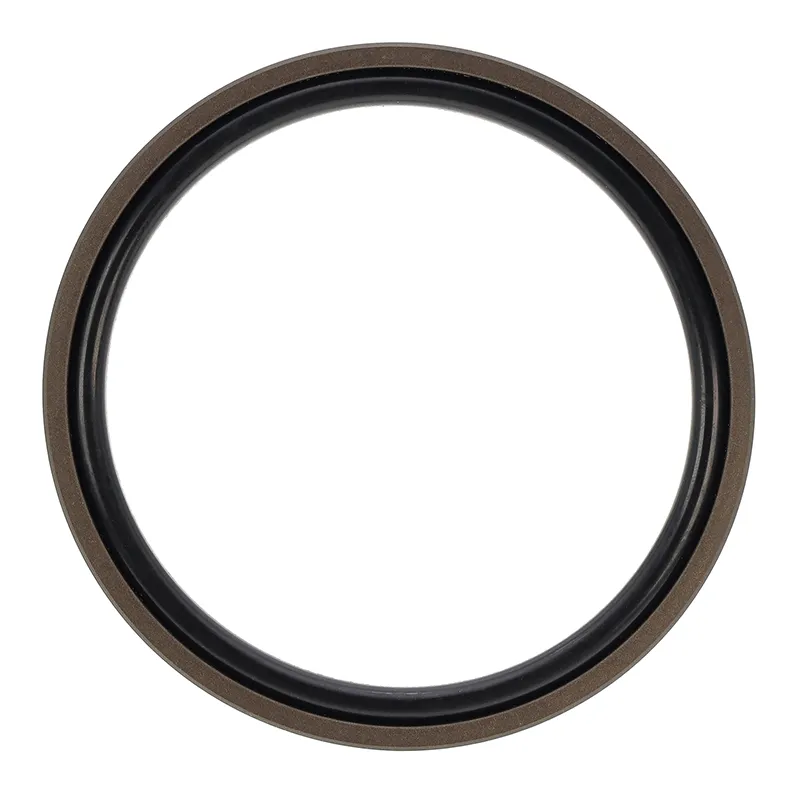

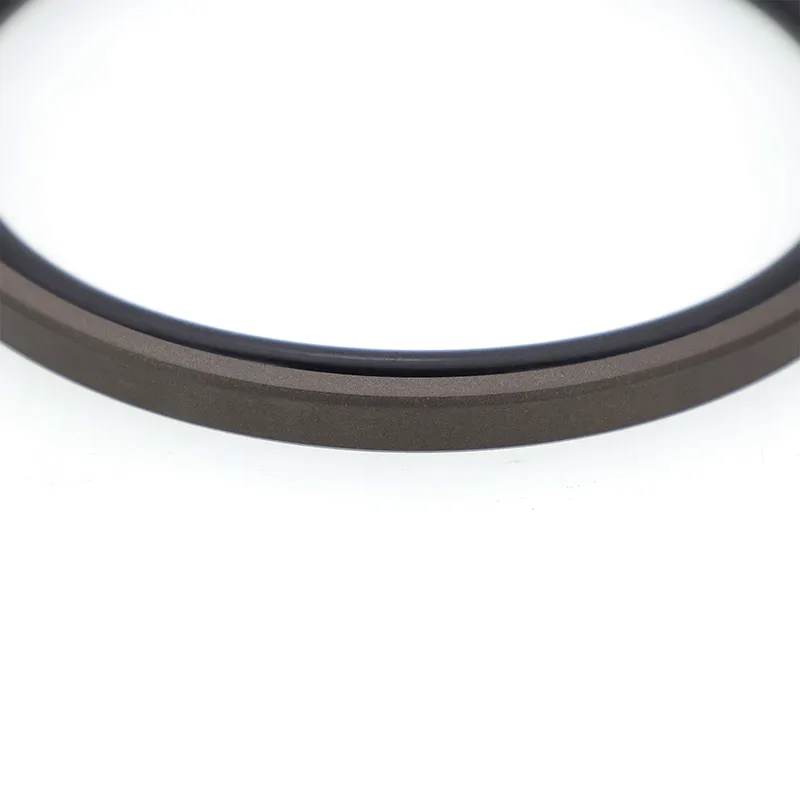

The SPGO Seal is a combination of a rectangular modified PTFE sealing ring and an O-ring as a preload element. It offers excellent sealing, low friction, and a compact footprint. It is suitable for high-speed hydraulic or pneumatic cylinders.
|
Pressure |
Maximum extrusion gap |
Speed |
Temperature |
Medium |
|
＜16 MPA |
S＜0.6mm |
＜6 m/s |
-35~+110 |
Mineral oil (with NBR rubber) |
|
＜25 MPA |
S＜0.4mm |
-20~+200 |
Mineral oil (with FKM rubber) |
|
|
＜40 MPA |
S＜0.2mm |
-30~+100 |
Air |
1. Available O-ring materials: R01 Nitrile-butadiene rubber (NBR), RO2 Fluororubber (FKM), etc.
2. Sealing ring material: Standard material: PTFE3; other available materials: PTFE1, PTFE2, and PTFE4.

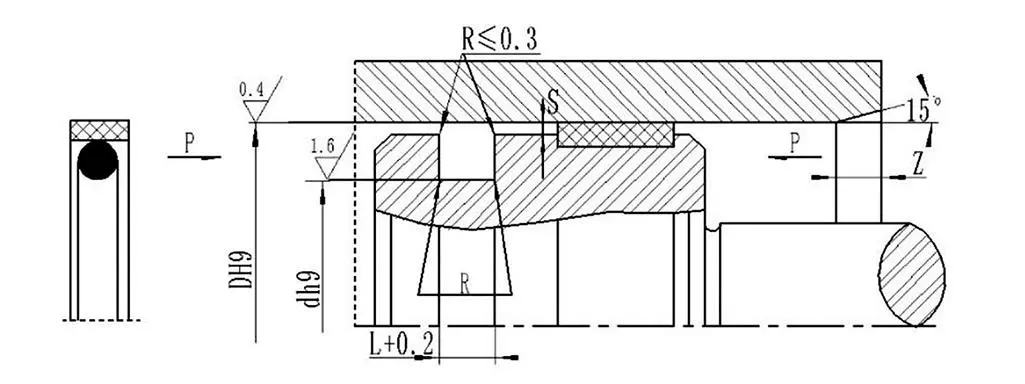

Ordering example: RC66-D*d*L-PTFE3-R01 (outer diameter*inner diameter*groove width) PTFE3, R01-material code
