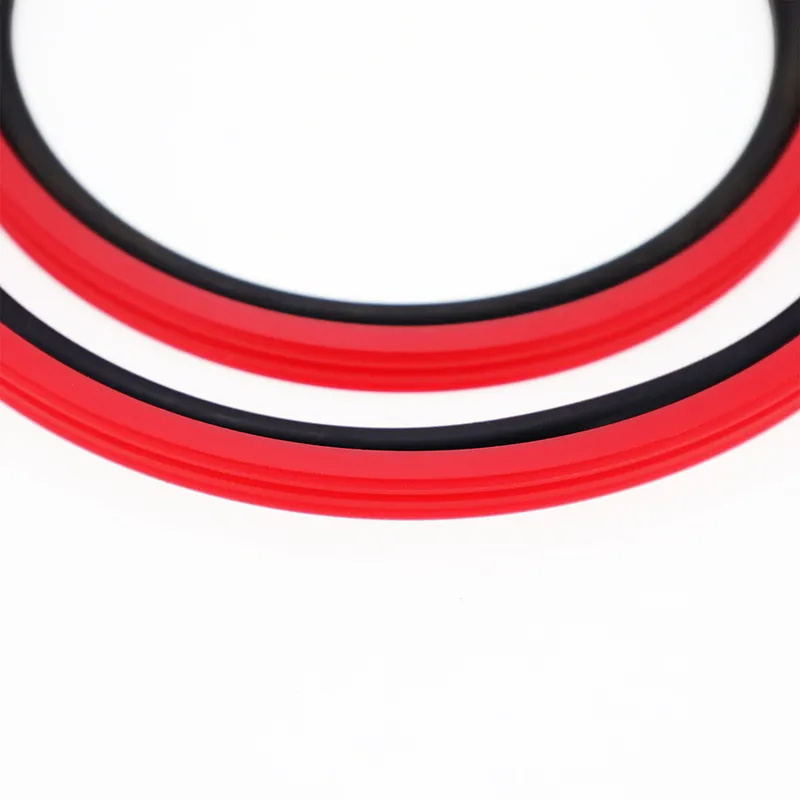

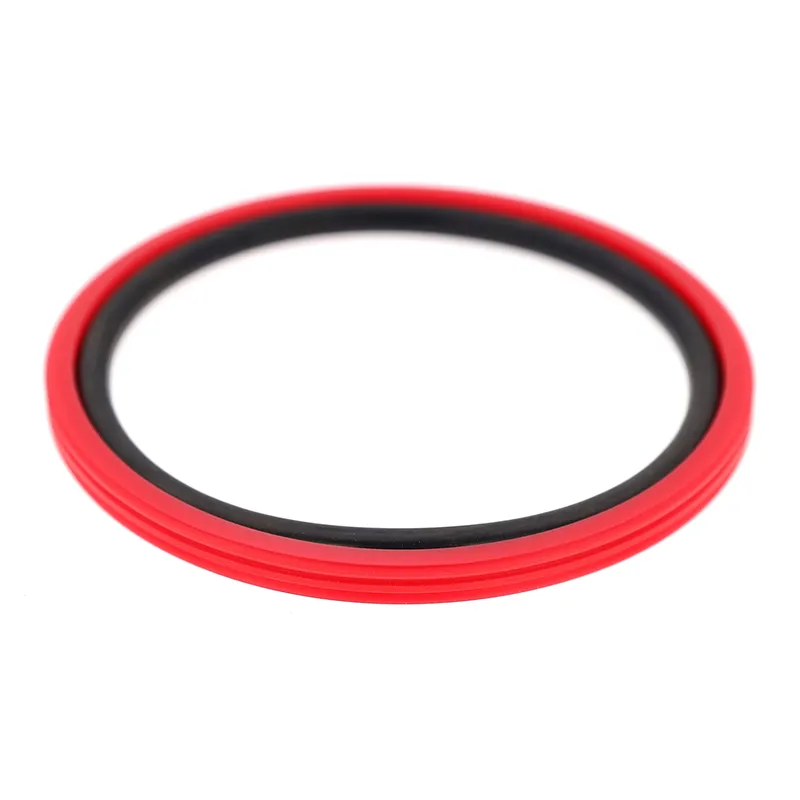

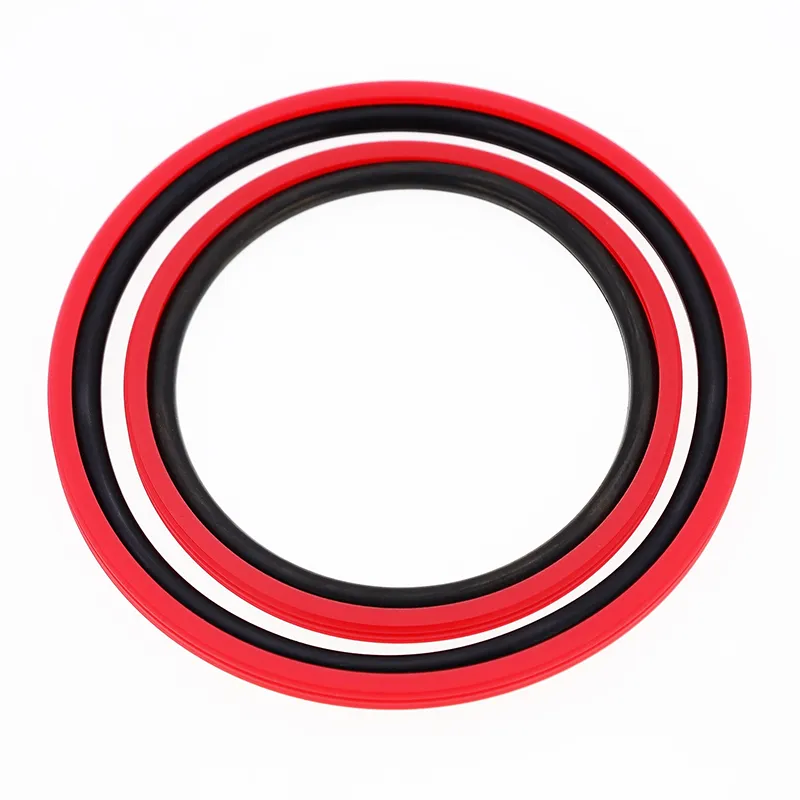

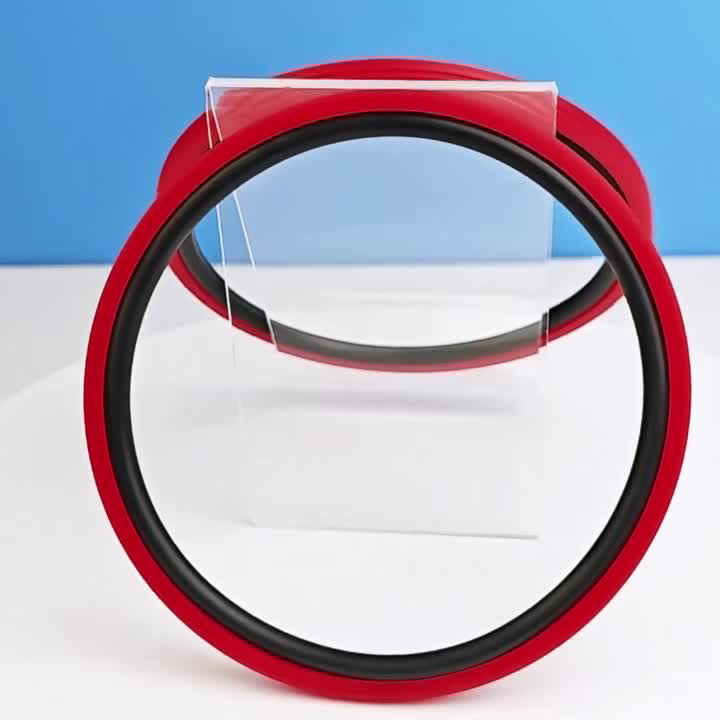

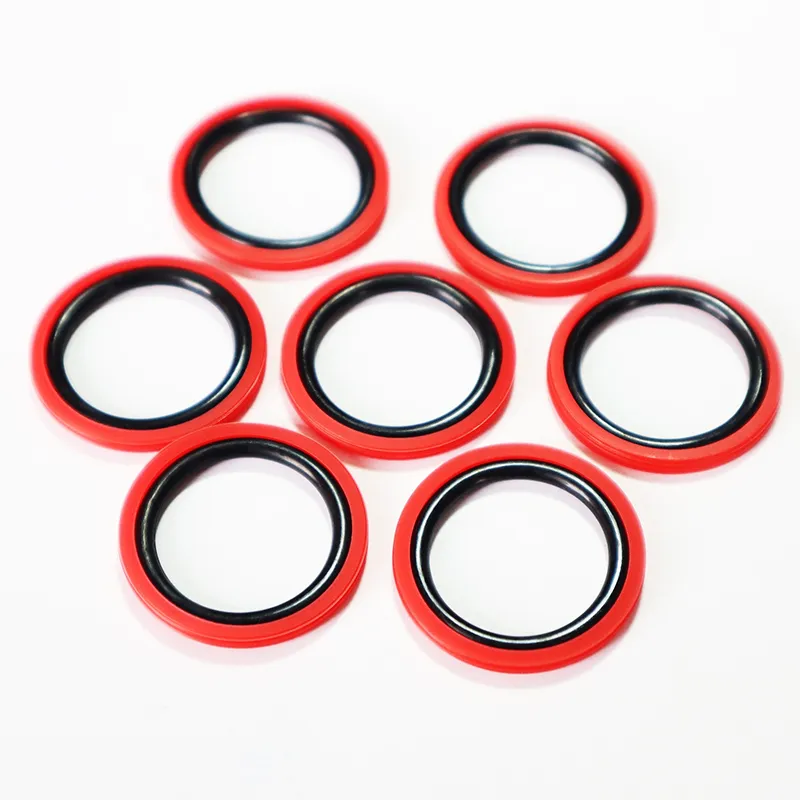

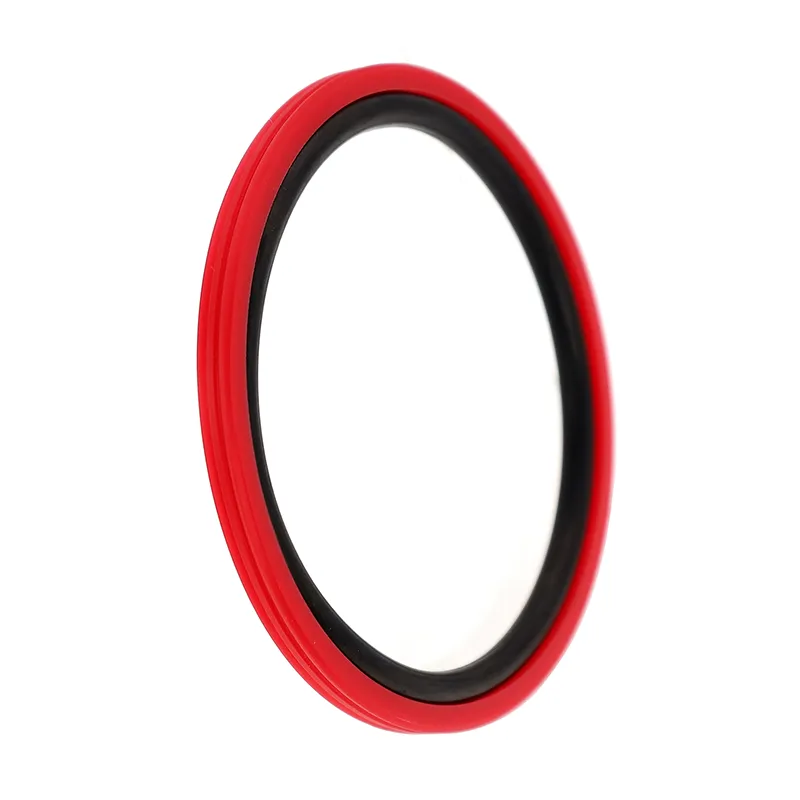

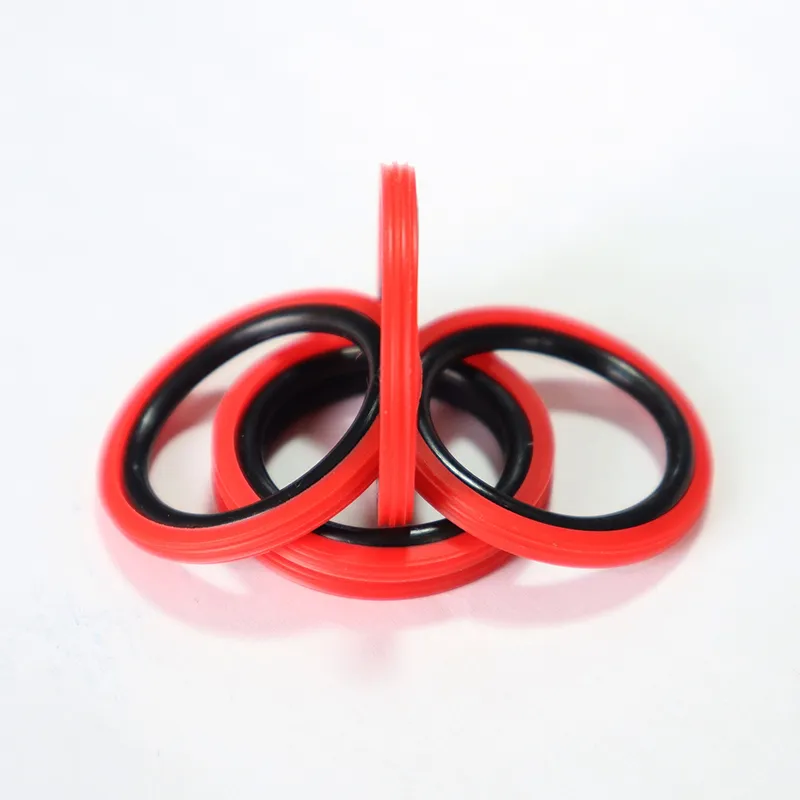

RPW Type Glyd Ring Seal

The RPW Type Glyd Ring Seal consists of a shaped PU sealing ring and an O-ring, suitable for bidirectional pressure sealing in reciprocating hydraulic applications. The O-ring provides radial force and compensates for seal ring wear. It is generally used in conjunction with a guide ring.

Features:

1. Low friction, low starting resistance, smooth movement, and no slip;

2. High pressure stability under pressure and harsh conditions;

3. Excellent sealing performance at both high and low pressures;

4. Tool-free installation.

Applicable working conditions (limit values should not appear at the same time)

Material Selection

1. O-ring Material: R01 Nitrile Rubber.

2. Sealing Ring Material: PU

Ordering Example

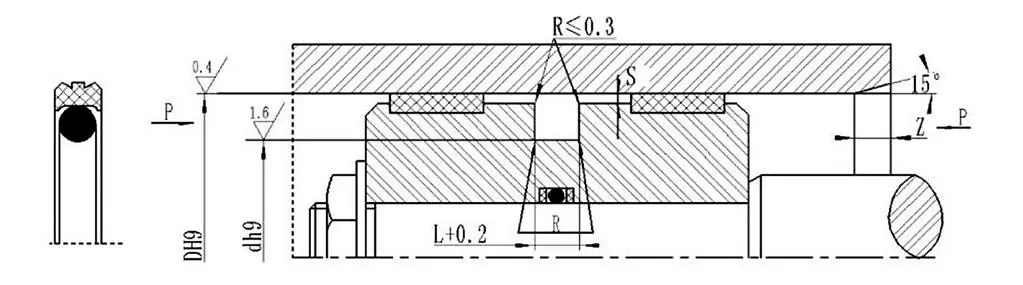

Order Model RPW-40x29x4.2 Model - Cylinder Diameter x Groove Diameter x Groove Width
