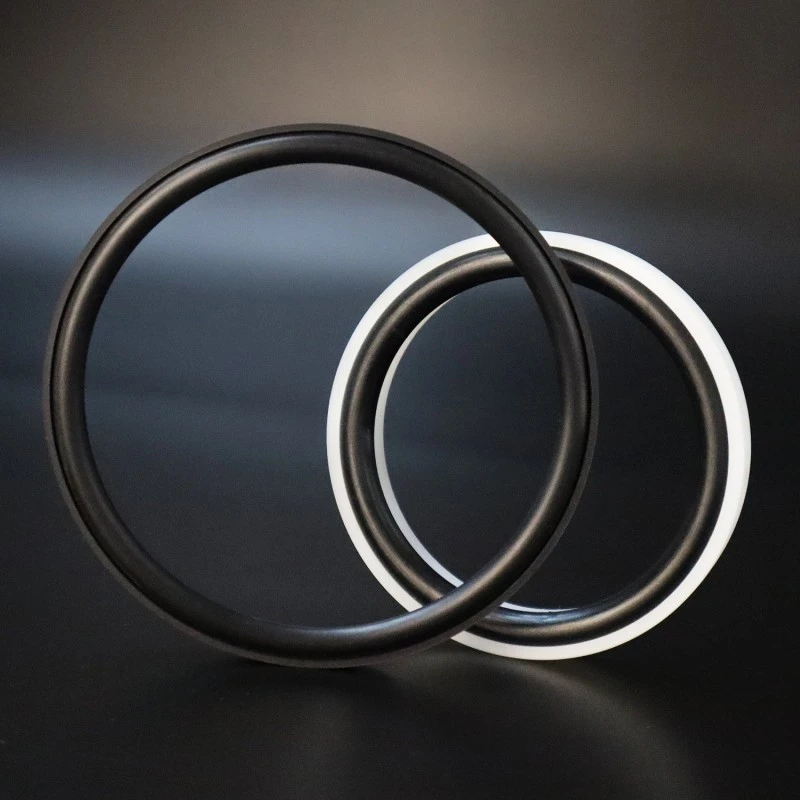

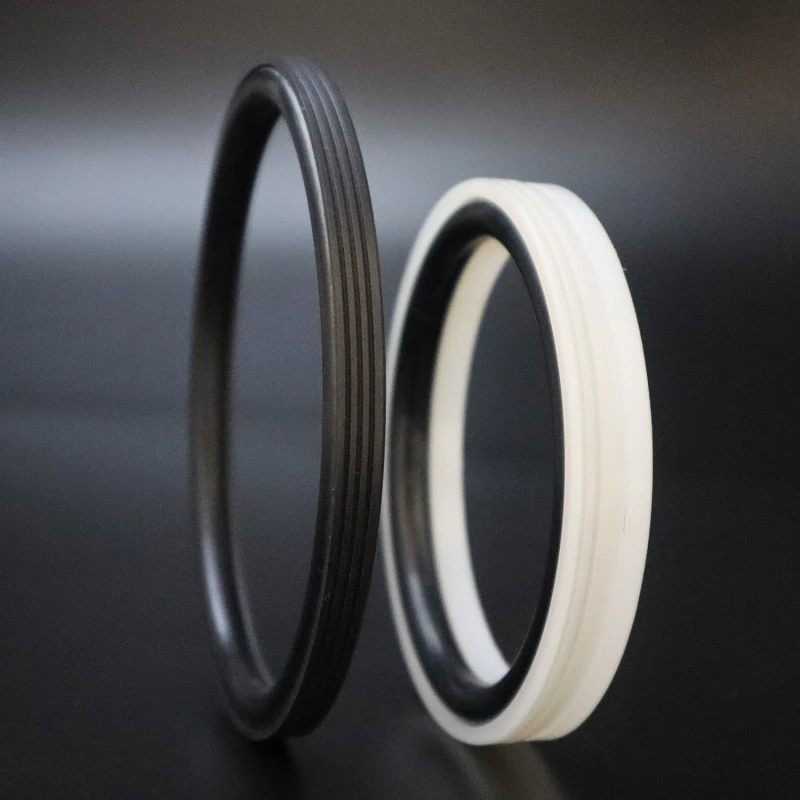

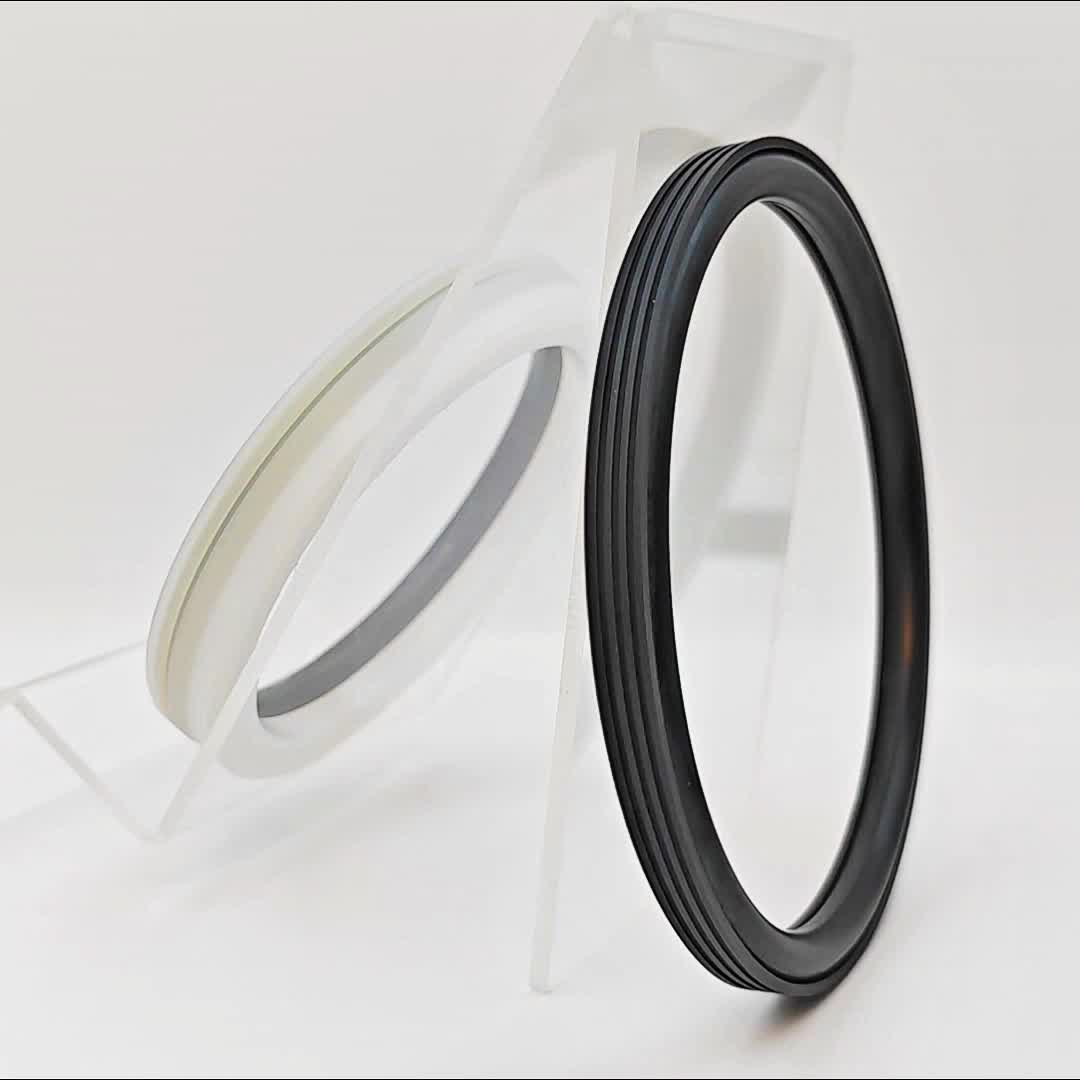

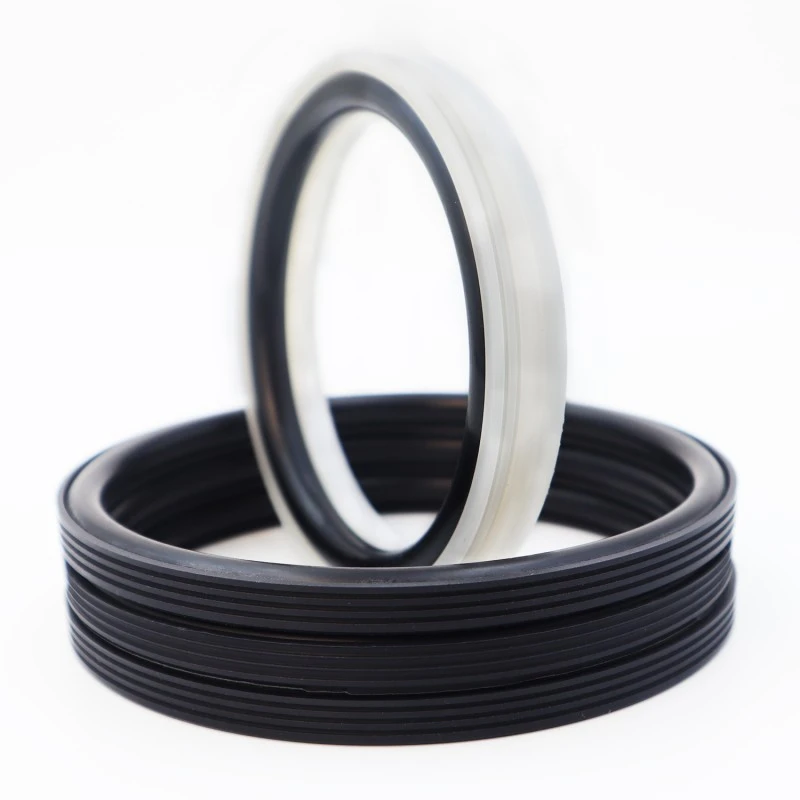

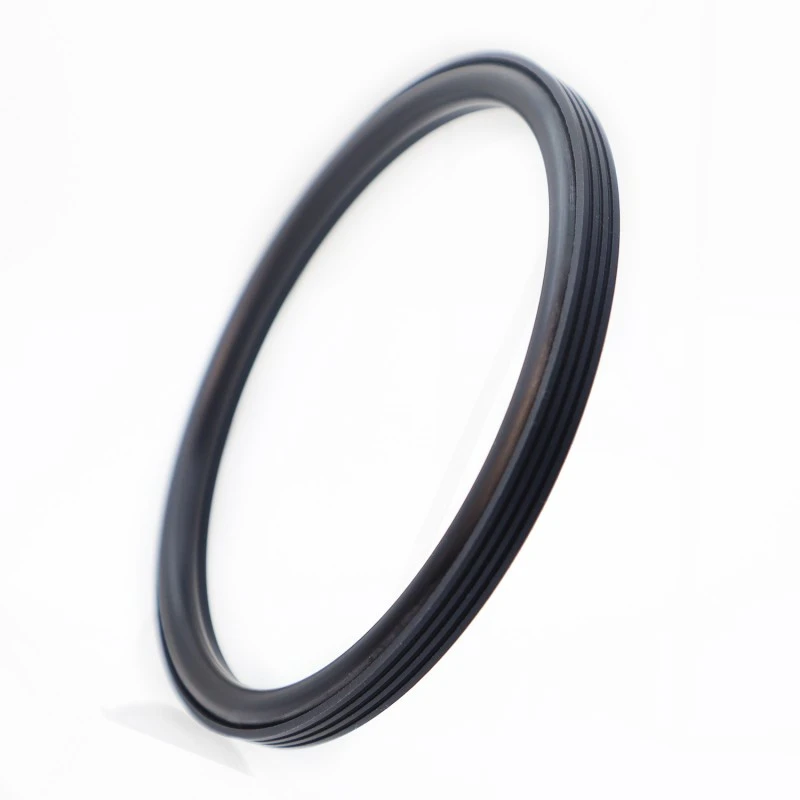

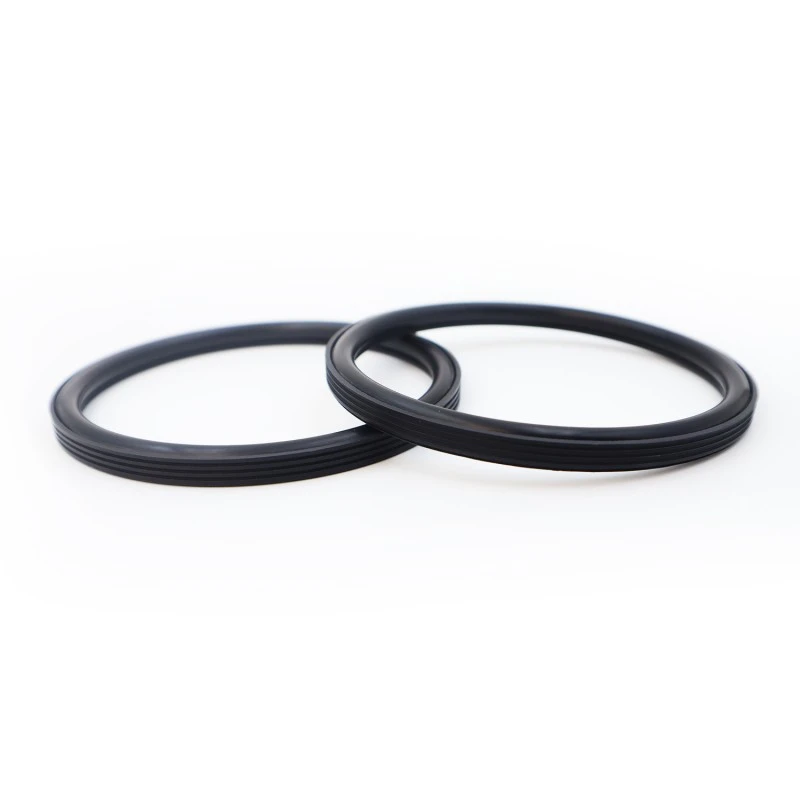

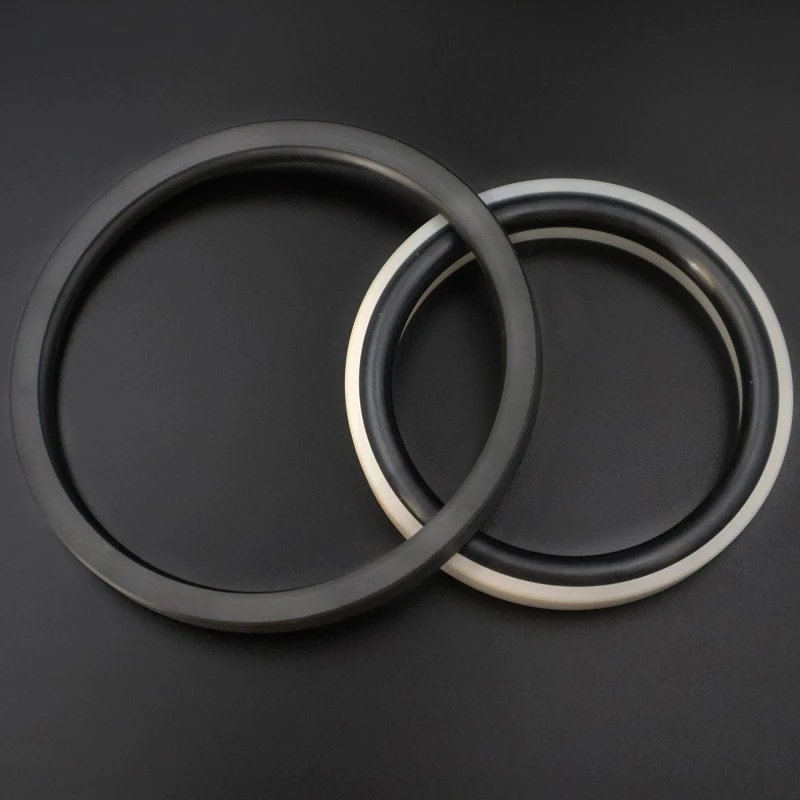

The Bore Seal, designed and manufactured by Ruichen Sealing Factory, is suitable for unidirectional sealing in hydraulic reciprocating and rotary motion applications. It features a long service life, low friction, excellent sealing performance, compact structure, and easy installation, use, and maintenance. The special sealing lip and optimized thickness design of the seal ensure excellent sealing performance even in harsh media such as cement grout.
|
Pressure/MPa |
Temperature/°C |
Speed / m/s |
Medium |
|
|
reciprocating motion |
Rotational motion |
|||
|
≤100 |
-35 to +100°C (with NBR O-ring) |
≤6 |
≤2 |
Water, mud, crude oil, hydraulic oil, emulsion |
|
-20 to +200°C (with FKM O-ring) |
||||
Material Selection
1. The accompanying O-ring materials can be selected from: R01 Nitrile rubber (NBR), R02 Fluororubber (FKM), etc.
2. Sealing ring material: Standard material is PTFE4, other available materials include PTFE2/PTFE3/PTFE5/UPE/PK1/PK2, etc.
Order example
Order model: RC2062-80*68.3*7.6-PTFE4-R01
Model - Bore diameter * Groove diameter * Groove width - Material code

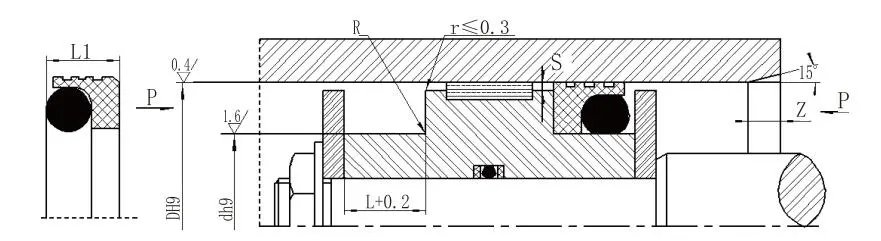

Specifications and parameters (Any size within the specified range is available.)
|
Aperture range Standard type DH9 RC2062 |
Aperture range Heavy loading DH9 RC2062-Z |
Groove diameter d h9 |
Groove width L+0.2 |
Seal width L1 |
Rounded corners Rmax |
Radial clearance Smax |
Chamfer Zmin |
O-ring wire diameter |
||
|
<10MPA |
<20MPA |
<40MPA |
||||||||
|
8~12.9 |
- |
D-4.5 |
3.1 |
2.8 |
0.3 |
0.3 |
0.2 |
0.15 |
3 |
1.8 |
|
13~24.9 |
10~12.9 |
D-6.3 |
4 |
3.65 |
0.4 |
0.4 |
0.25 |
0.15 |
4 |
2.65 |
|
25~51.9 |
13~24.9 |
D-8.2 |
5.2 |
4.55 |
0.4 |
0.4 |
0.25 |
0.2 |
5 |
3.55 |
|
52~127.9 |
25~51.9 |
D-11.7 |
7.6 |
6.80 |
0.5 |
0.5 |
0.3 |
0.2 |
7 |
5.30 |
|
128~500.9 |
52~127.9 |
D-15.5 |
9.6 |
8.50 |
0.6 |
0.6 |
0.35 |
0.25 |
8 |
7.00 |
|
501~1500 |
128~500.9 |
D-19.4 |
12.1 |
11.1 |
0.7 |
0.7 |
0.5 |
0.3 |
10 |
8.60 |
Note: 1. For cylinder bores ≤ 30mm, an open groove design is recommended.
2. For pressures greater than 30 MPa, an H8/f8 fit is recommended for the extrusion gap.
Comprehensive testing capabilities: Our central laboratory is equipped with a full range of testing equipment, capable of simulating product performance under actual working conditions. Testing items include, but are not limited to:
Dimensional inspection: Using high-precision 2D image measuring instruments and coordinate measuring machines to ensure that product dimensions fully meet the drawing tolerance requirements.
Performance testing: Including high-temperature aging tests, low-temperature tests, oil/medium resistance tests, wear resistance tests, burst pressure tests, etc.
Life cycle testing: Predicting the service life and reliability of the product through durability bench tests that simulate actual working conditions.
