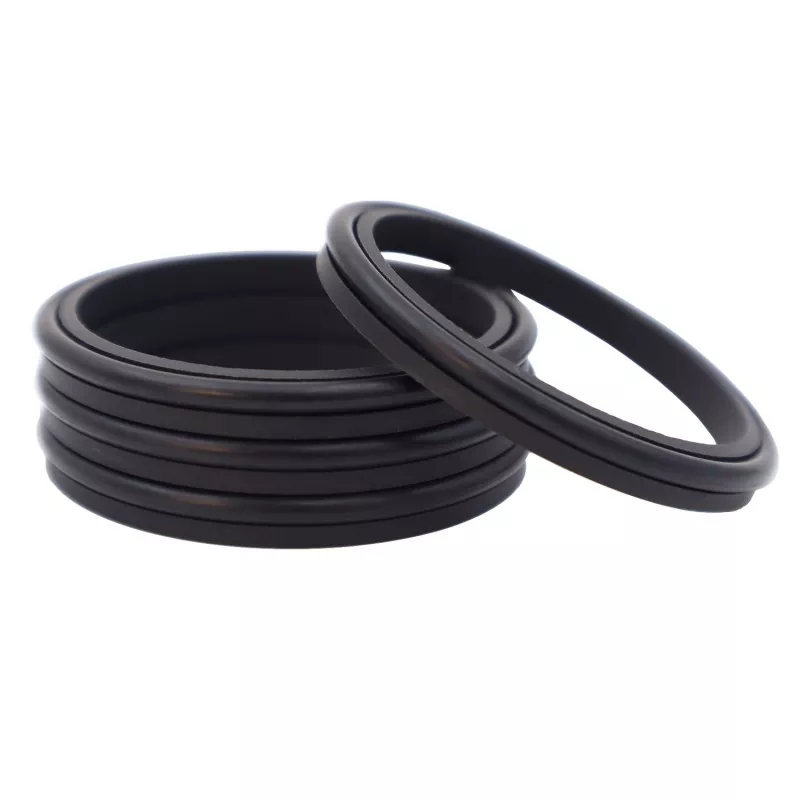

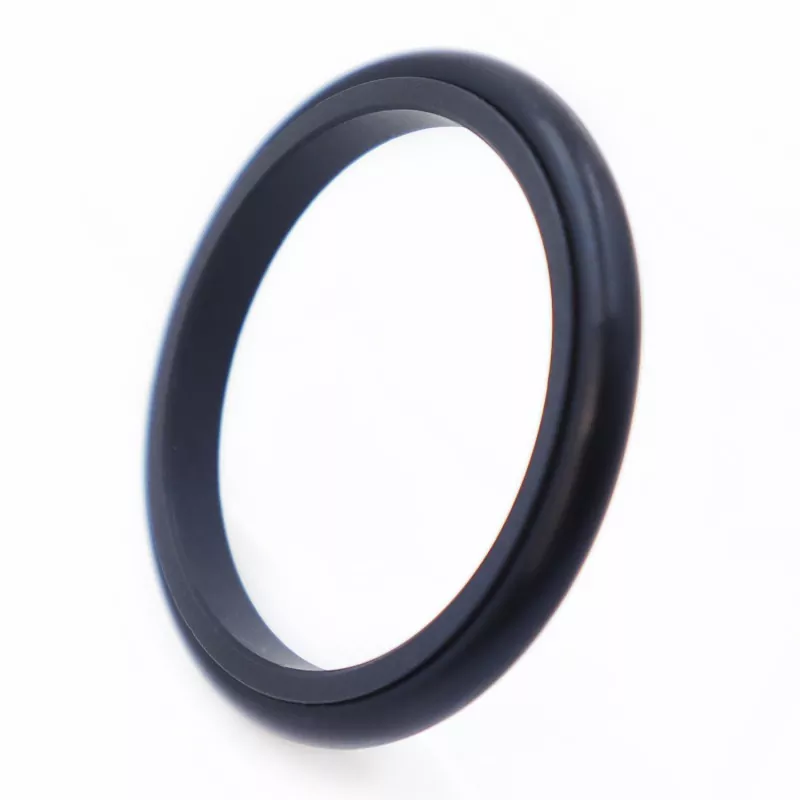

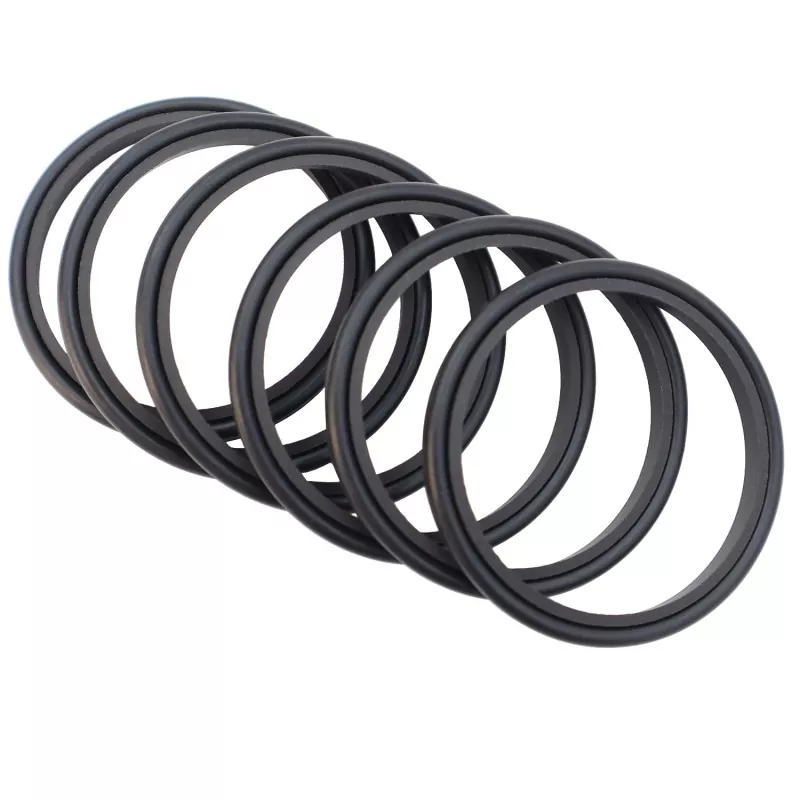

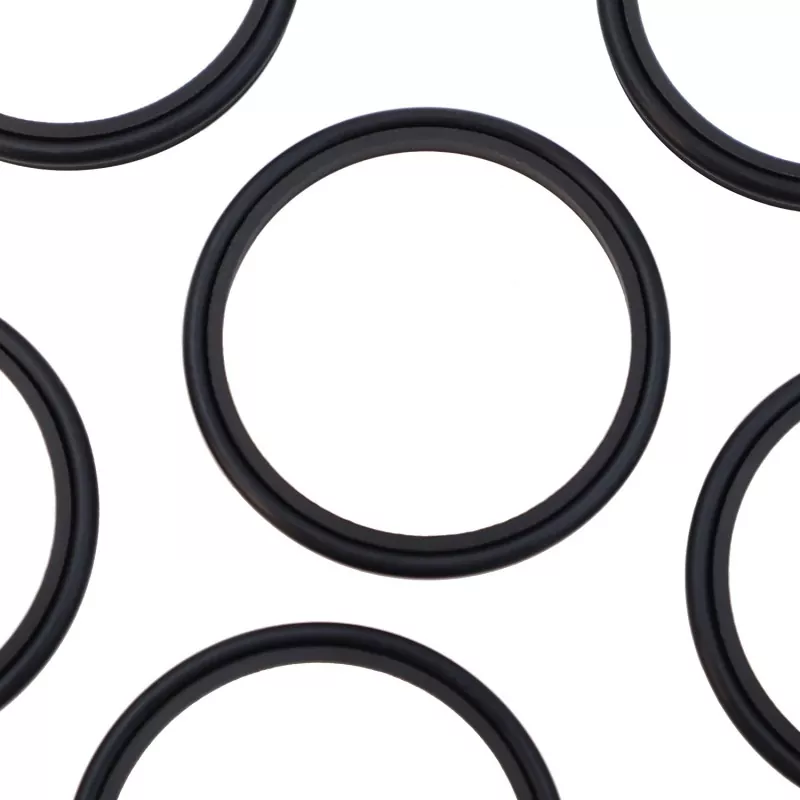

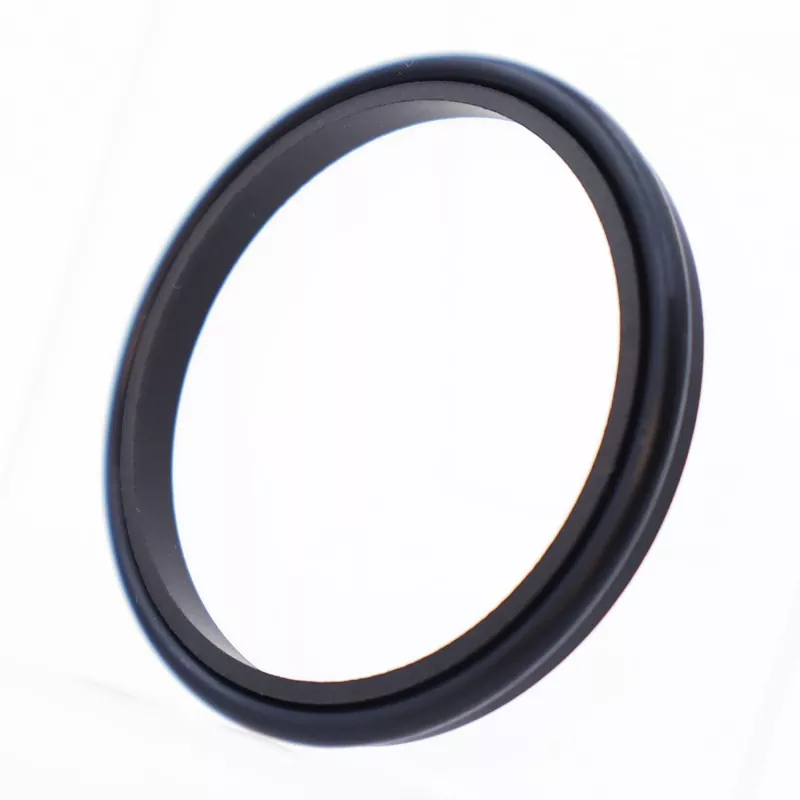

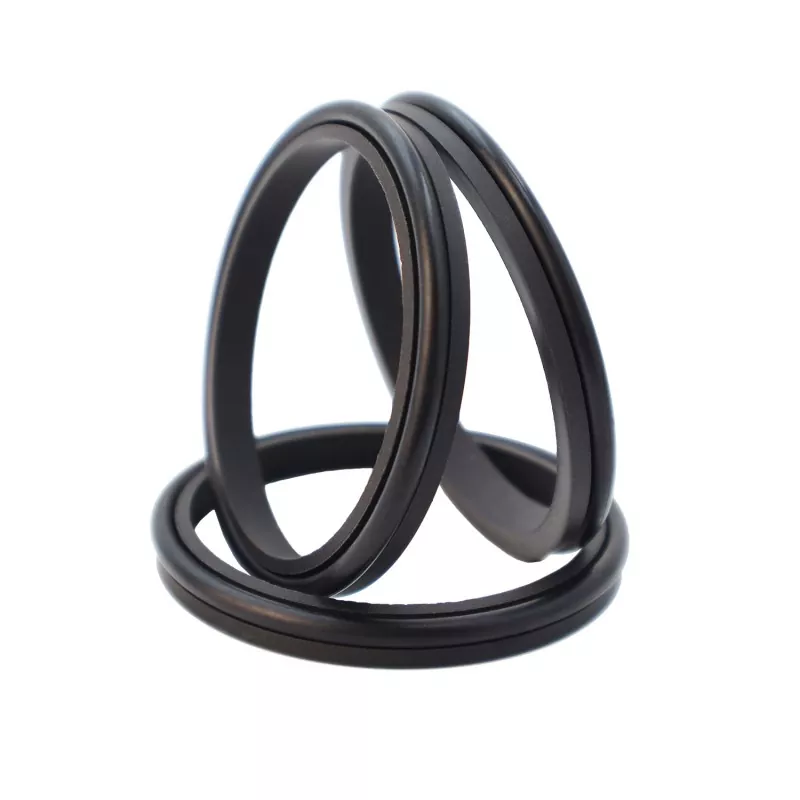

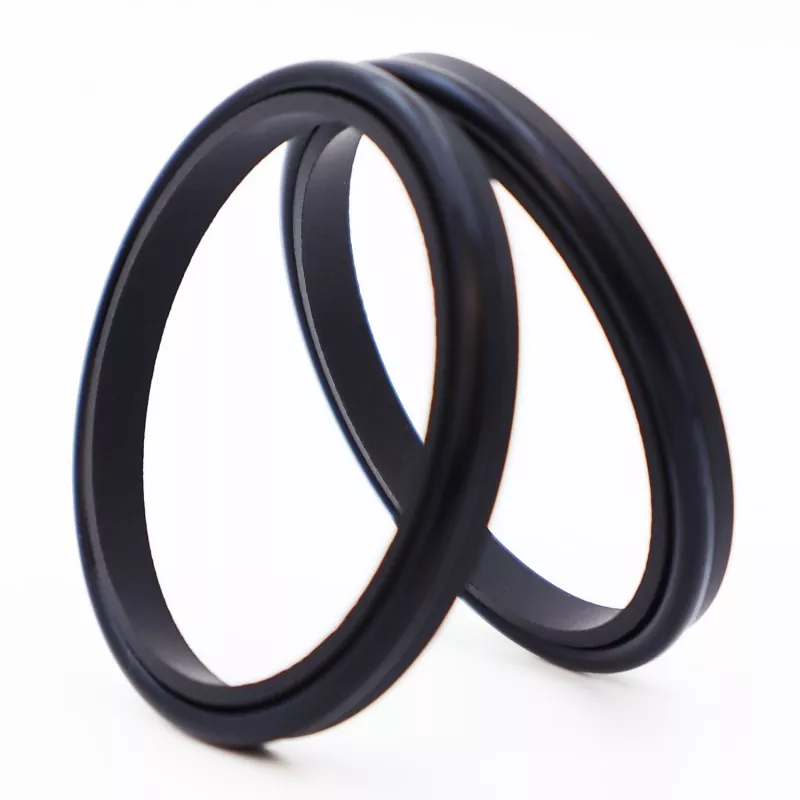

The Single Lip Combined Wiper Seal is a single-acting wiper seal composed of a filled PTFE single-lip wiper ring and a rubber O-ring; it functions to scrape away dust and prevent system contamination. It is suitable for reciprocating, oscillating, or helical motion applications.
|
Pressure (MPa) |
Temperature (°C) |
Speed m/s |
Media |
|
- |
-35 to +100 (with NBR O-ring) |
6 |
Hydraulic oil, emulsion, water, etc. |
|
-20 to +200 (with FKM O-ring) |
Order Model: RCF03—80-PTFE3—R01
RCF03 – Model | 80 – Shaft Diameter | PTFE3 – General-purpose Modified PTFE | R01 – Material Code for Rubber Components
Nitrile Rubber (NBR) – R01 | Fluororubber (FKM) – R02
Products can be supplied in any size within the specified parameter range.
|

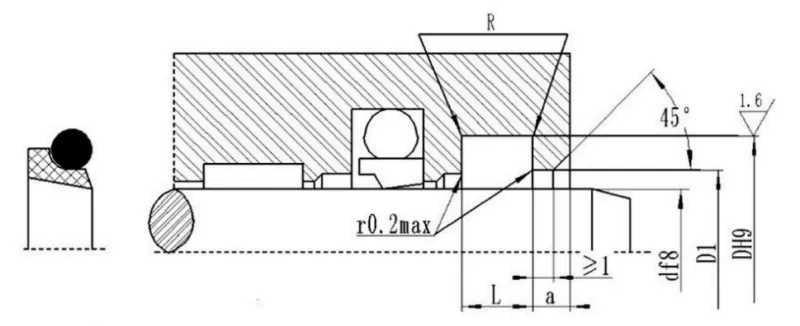

Shaft diameter range d f8 |
Groove diameter D H9 |
Groove width L+0.2 |
Clearance hole diameter D1 H11 |
Clear opening width a ≥ |
Corner radius R≤ |
O-ring Cross-section diameter do |
|
4~11 |
d+4.8 |
3.7 |
d+1.5 |
2 |
0.4 |
1.80 |
|
12~64 |
d+6.8 |
5.0 |
d+1.5 |
2 |
0.7 |
2.65 |
|
65~250 |
d+8.8 |
6.0 |
d+1.5 |
3 |
1.0 |
3.55 |
|
251~420 |
d+12.2 |
8.4 |
d+2.0 |
4 |
1.5 |
5.30 |
|
421~650 |
d+16.0 |
11.0 |
d+2.0 |
4 |
1.5 |
7.00 |
|
651~1500 |
d+20.0 |
14.0 |
d+2.5 |
5 |
2.0 |
8.60 |
