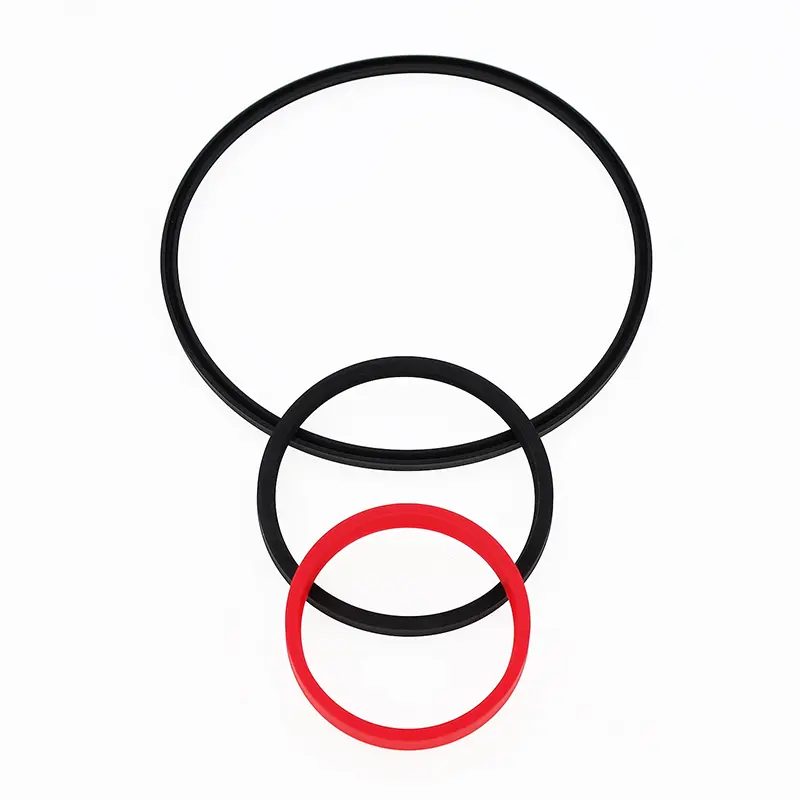

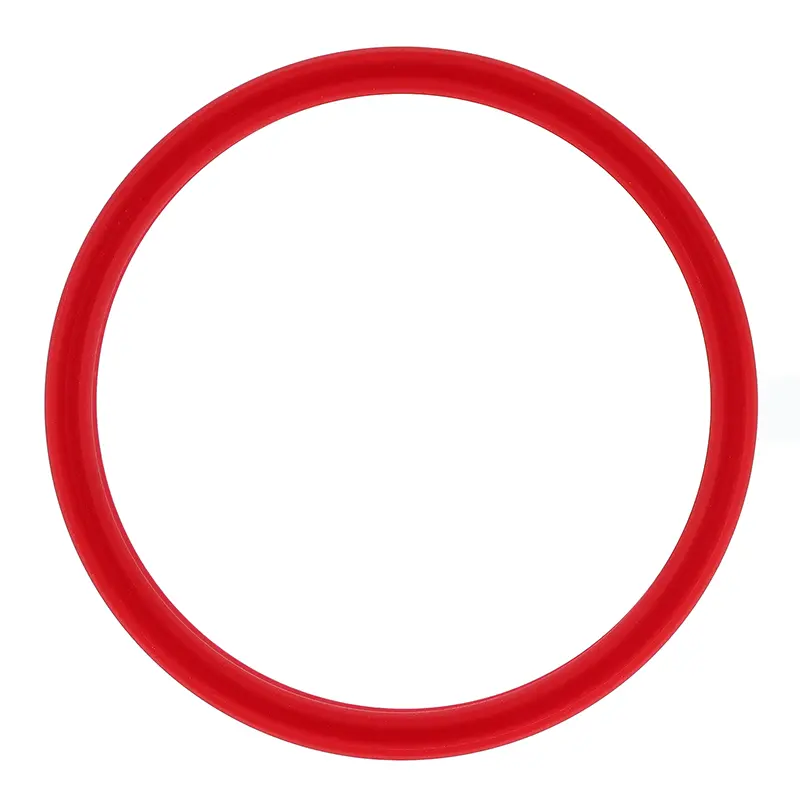

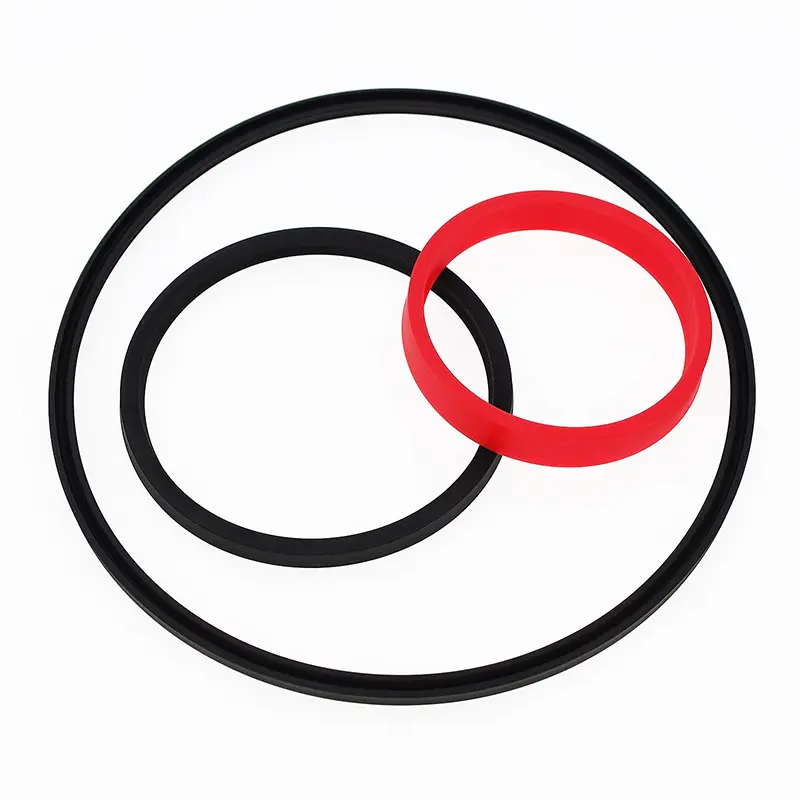

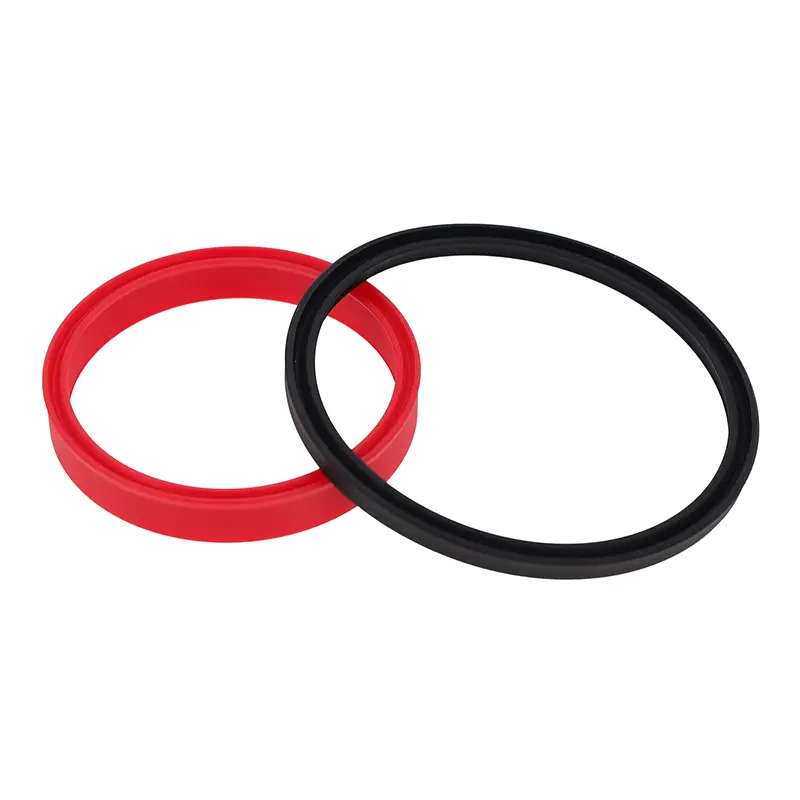

Shaft seals are asymmetrical seals designed specifically for piston rods, featuring a complementary lip on the inside. They are suitable for one-way sealing in reciprocating hydraulic applications and offer excellent sealing performance. The groove conforms to ISO 5597. They can be used independently or as a secondary seal within a sealing system.
Features:
1. Excellent static and dynamic sealing performance;
2. Low friction, smooth movement, and strong residual oil recovery capability under dynamic conditions;
3. Simple structure, easy installation and maintenance.
Applicable Operating Conditions (Extreme Values Should Not Appear Simultaneously)
|
Pressure Mpa |
Temperature ℃ |
Speed m/s |
Medium |
|
≤40 |
-30~+100 |
≤0.5 |
Hydraulic oil, minerals, emulsion, etc. |
Material Selection
Polyurethane (PU)
Ordering Example
Order Model RCUSR 63x73x6 Rod Diameter x Groove Diameter x Seal Height

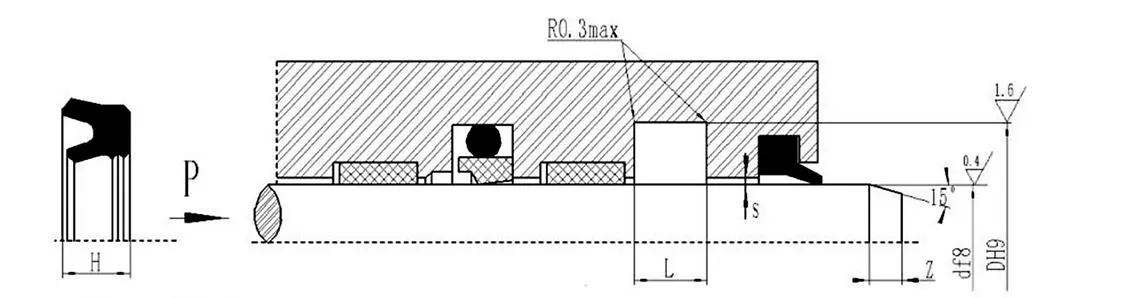

Extrusion Gap
|
Pressure/Mpa |
Extrusion gap Smax |
|
|
Rod diameter d≤60mm |
Rod diameter d>60mm |
|
|
≤5 |
0.4 |
0.5 |
|
≤10 |
0.3 |
0.4 |
|
≤20 |
0.2 |
0.3 |
|
≤30 |
0.15 |
0.2 |
|
≤40 |
0.1 |
0.15 |
