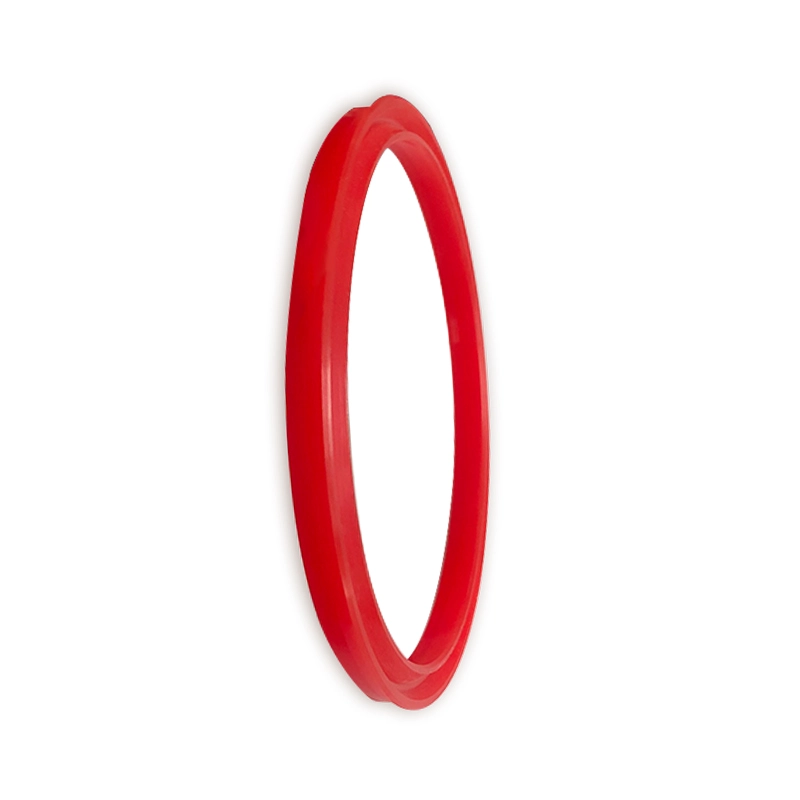

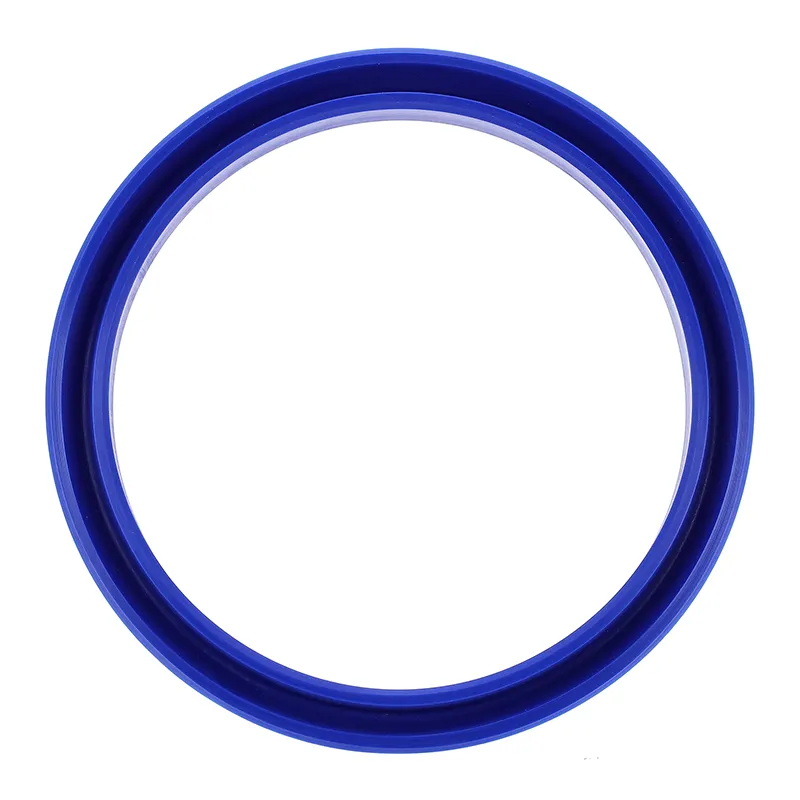

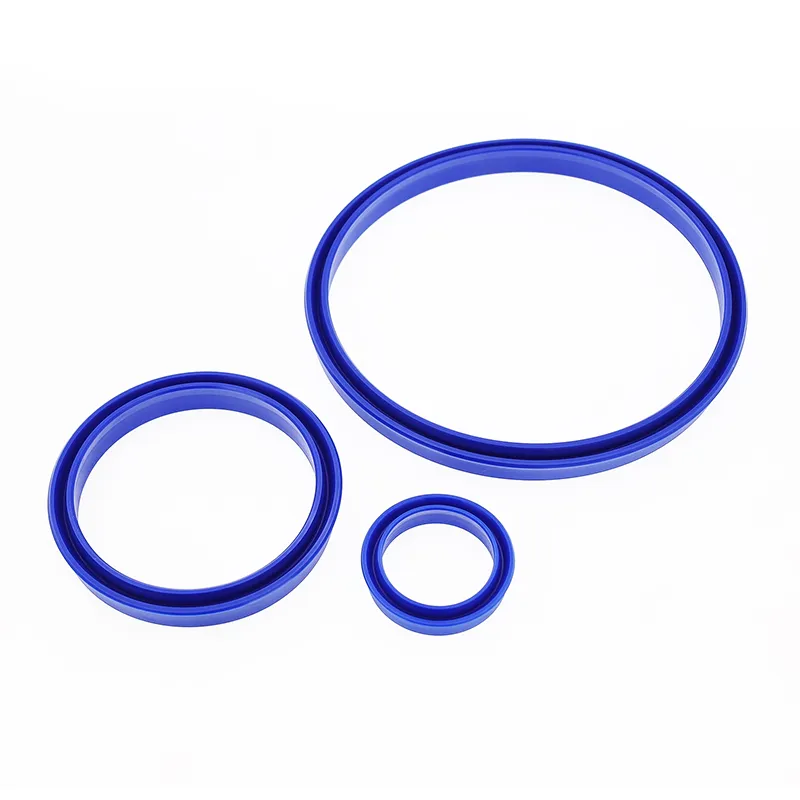

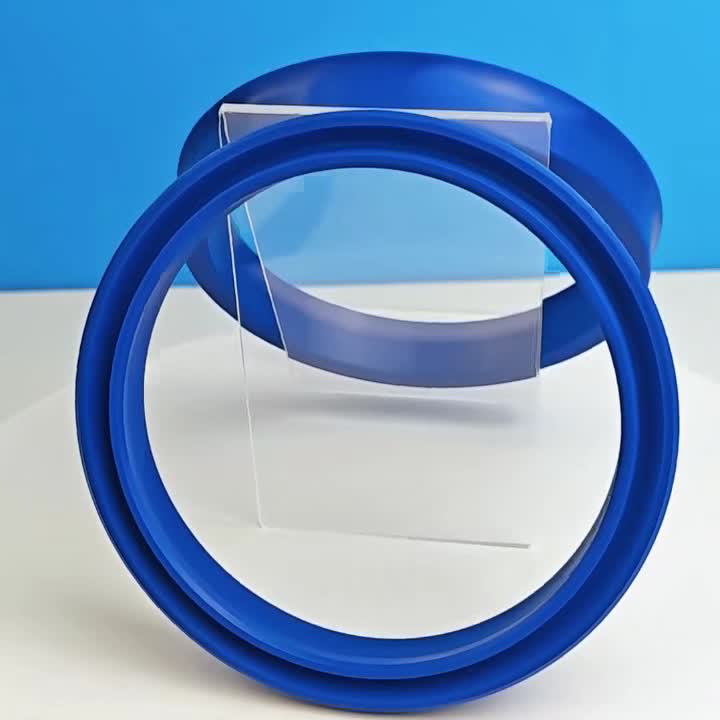

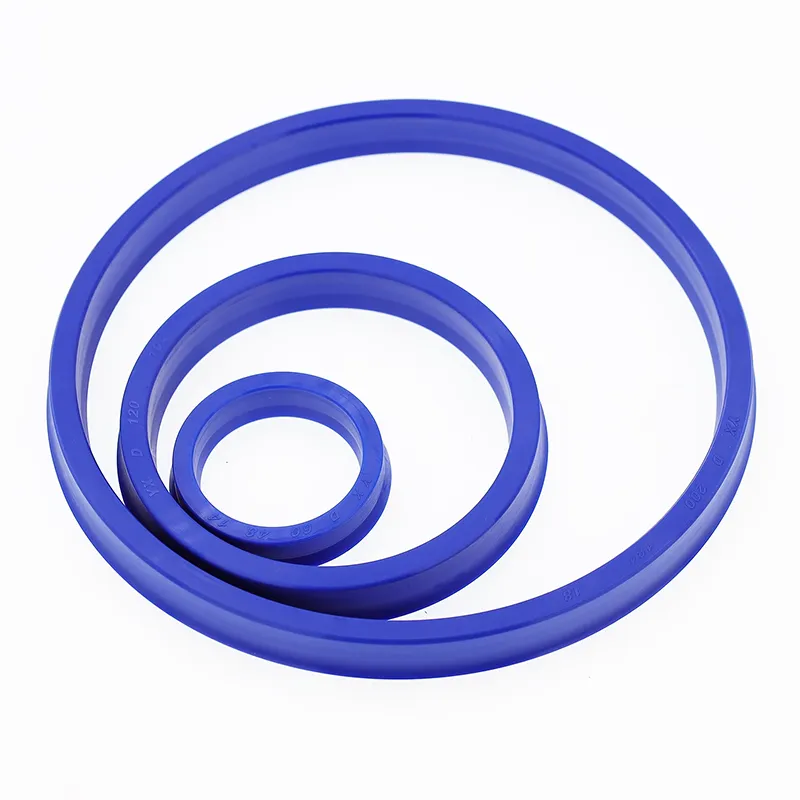

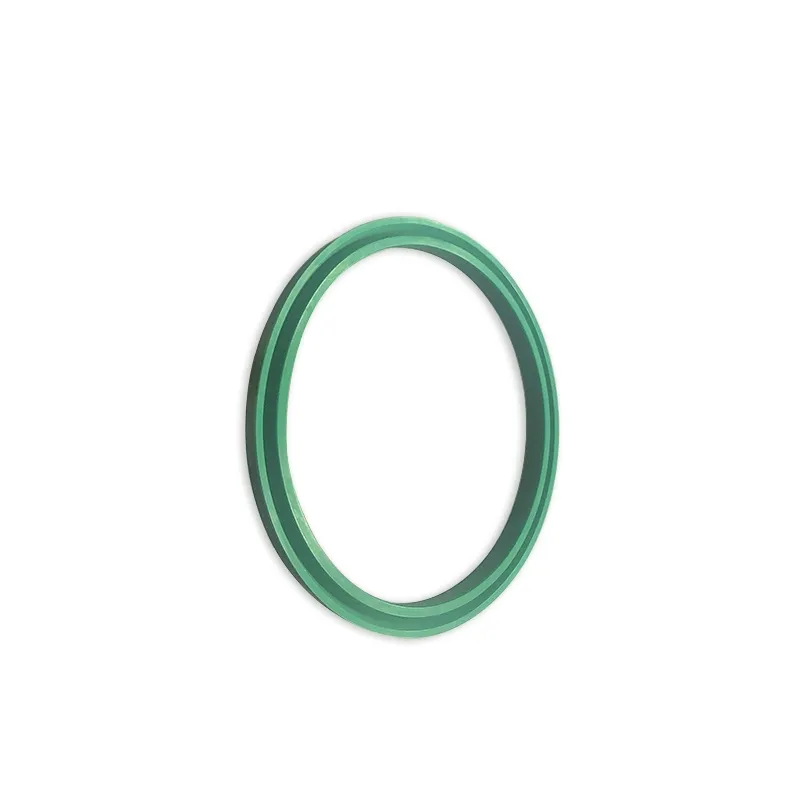

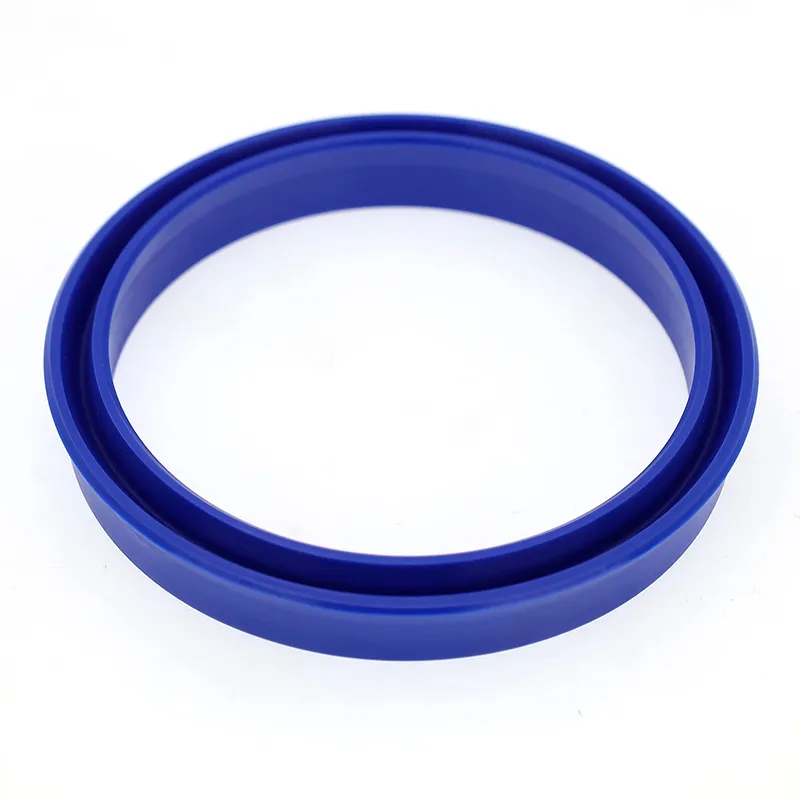

The Premium Single-Acting U-Cup Lip Seal is an asymmetric seal designed for use on pistons. It is suitable for one-way sealing in hydraulic reciprocating motion and offers excellent sealing performance. The groove conforms to ISO5597 standards.
|
Pressure Mpa |
Temperature ℃ |
Speed m/s |
Medium |
|
≤40 |
-30~+100 |
≤0.5 |
Hydraulic oil, minerals, emulsion, etc. |
Material selection: polyurethane (PU)

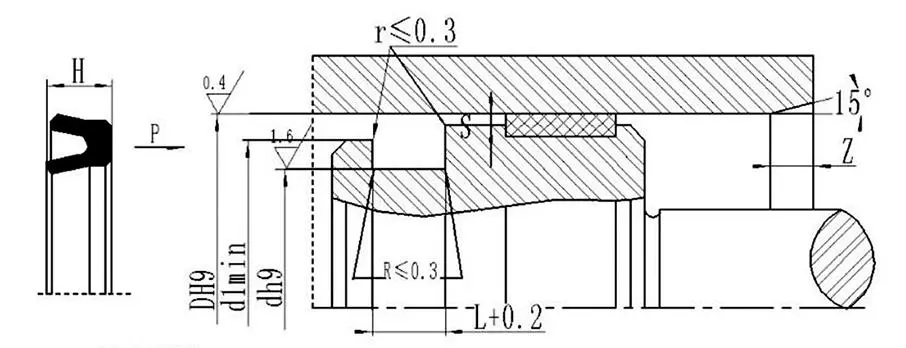

Order Model RCUPD63x48x10 Cylinder Diameter x Groove Diameter x Seal Height
|
Pressure Mpa |
Extrusion gap Smax |
|
|
Cylinder diameter D≤60mm |
Cylinder diameter D>60mm |
|
|
≤5 |
0.4 |
0.5 |
|
≤10 |
0.3 |
0.5 |
|
≤20 |
0.2 |
0.3 |
|
≤30 |
0.15 |
0.2 |
|
≤40 |
0.1 |
0.15 |
